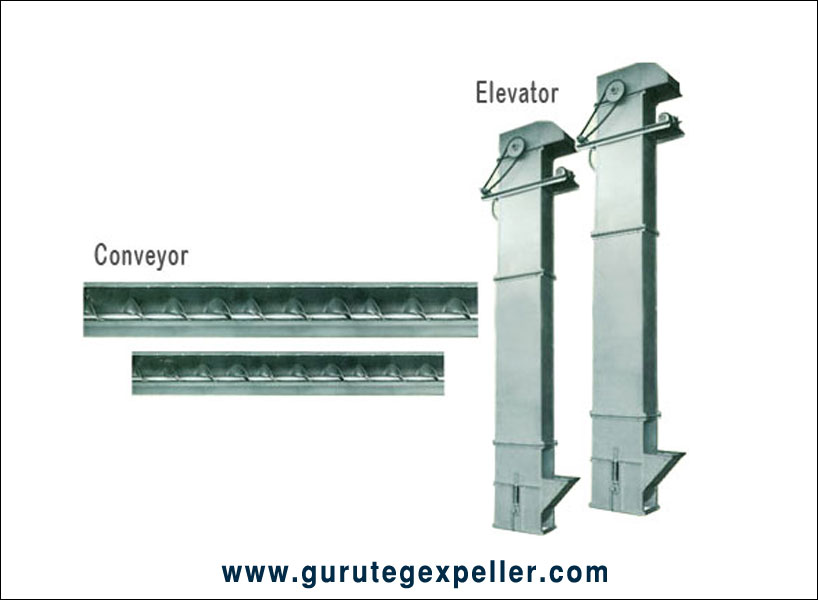

The range of Screw Conveyor & Redler offered by us finds functionality in carrying of seeds & cakes to various machines for processing as well as carrying the finished products to the godowns, thereby reducing the manpower requirement.
Available Types : Screw Conveyor & Redler Conveyor
Available Capacities : As per the capacity of plant
Elevators are available in any height complete with top bottom and intermediate casing. The frame is made of Mild Steel Sheet made rigid by angle Steel Roller Type chain fitted with seamless pressed steel Buckets cast Iron sprocket wheels are mounted on shaft supported by double row self - aligning Ball bearings. The take-up arrangement is at bottom for easy erection and correct tensioning of the chain. The buckets are spaced at suitable distance. The top shaft is extended for drive purpose.
| Chain-Buckets elevators are available in following sizes. | ||
| Chain No. | Bucket | Casing Size |
| 578 Malleable | 6" x 4" x 3 1/4" | 13 x 26 |
| 15 x 33 | ||
| 578 Steel Roller Type | 8" x 5 1/4" x 4½" | 18 x 36 |
The above Elevators can transport 1 1/4 ton to 8 tons of material per hour depending upon size of buckets, speed of elevator and the type of material being handled
